How to Diagnose Car Battery vs. Alternator Issues

Few things are more frustrating than turning the key in the ignition and being met with silence or a weak click. For motorists, a flat battery is one of the leading causes of roadside breakdowns, with the AA and RAC reporting thousands of call-outs every winter. But not every no-start situation is caused by the battery itself; often, the alternator – the device that recharges the battery and powers the vehicle’s electrical systems – is the real culprit.

Correctly identifying the root cause is vital. Replacing a perfectly good battery when the alternator is faulty wastes money, while ignoring a weak battery can leave you stranded at the most inconvenient moment. This article provides a step-by-step guide to distinguish between a failing car battery, a defective alternator, and other related issues.

Table Of Contents

Understanding the Roles of the Battery and Alternator
Symptoms of Battery vs. Alternator Problems
Could Something Else Be Draining the Battery?
How to Diagnose Battery and Alternator Issues
When to Replace the Battery or Alternator
Final Recommendations
Conclusion
Frequently Asked Questions (FAQs)
References

Understanding the Roles of the Battery and Alternator

The Battery’s Role

The car battery is essentially the vehicle’s energy reservoir. It provides the initial surge of electricity required to crank the engine and also supports electronics – from headlights to infotainment systems – when the engine is switched off. Lead–acid batteries, the most common type in vehicles, generally last between 3–5 years. Age, cold weather, and frequent short trips reduce their capacity to hold charge, eventually leading to starting problems.

The Alternator’s Role

Once the engine is running, the alternator takes over. It converts mechanical energy from the engine into electrical energy, recharging the battery while simultaneously powering systems such as heating, headlights, electric windows, and dashboard displays. A failing alternator is insidious: it can mimic the symptoms of a weak battery, slowly draining the system until the vehicle becomes unreliable.

Symptoms of Battery vs. Alternator Problems

Signs of a Failing Battery

Slow Engine Crank: The engine turns over sluggishly or makes clicking noises.
Diminished Electronics: Headlights, dashboard lights, or radio appear weak or flicker when idling.
Corroded Terminals: A white or bluish powder around the terminals can interrupt current flow.
Old Battery: Beyond 3–5 years, most batteries lose capacity and may require replacement.

Signs of a Faulty Alternator

Battery Warning Light: A red battery-shaped icon on the dashboard often signals charging issues.
Strange Noises: A squealing belt or grinding from the alternator indicates wear or bearing failure.
Electrical Failures: Erratic operation of power windows, wipers, or heated seats can point to insufficient charging.
Repeated Battery Drain: If a recently replaced battery keeps going flat, the alternator is suspect.

How to Diagnose Car Battery vs Alternator issues lines — Testing car battery voltage and alternator charging output with a multimeter.

Could Something Else Be Draining the Battery?

It is not always a simple battery-vs-alternator question. A parasitic drain can quietly discharge a battery overnight or over days.

Common culprits include:

Faulty door or boot switches leaving interior lights on.
Aftermarket alarms, stereos, or trackers drawing constant current.
Electrical shorts, damaged wiring looms, or stuck relays.

If parasitic drain is suspected, specialist testing with a multimeter is required.

How to Diagnose Battery and Alternator Issues

Step 1: Visual Inspection

Before reaching for tools:

Check the battery terminals for corrosion or loose fittings.
Inspect the alternator belt for cracks, glazing, or slack.
Look for physical battery damage, such as swelling, leaks, or cracked casings.

Step 2: Test Battery Voltage with a Multimeter

Engine Off: A healthy battery should read ~12.6 V. Anything below 12 V is considered weak.
Engine Running: Voltage should rise to 13.8–14.5 V. A flat reading suggests the alternator is not charging.

Step 3: Perform a Battery Load Test

A battery may show acceptable voltage but fail under load.
Using a load tester (widely available in auto shops), simulate engine starting.
If the voltage drops below 10 V under load, the battery is defective.

Step 4: Check Voltage Drop Between Battery and Alternator

Measure between the battery’s positive terminal and the alternator’s output while running.
A drop of more than 0.5 V indicates faulty wiring or poor connections.

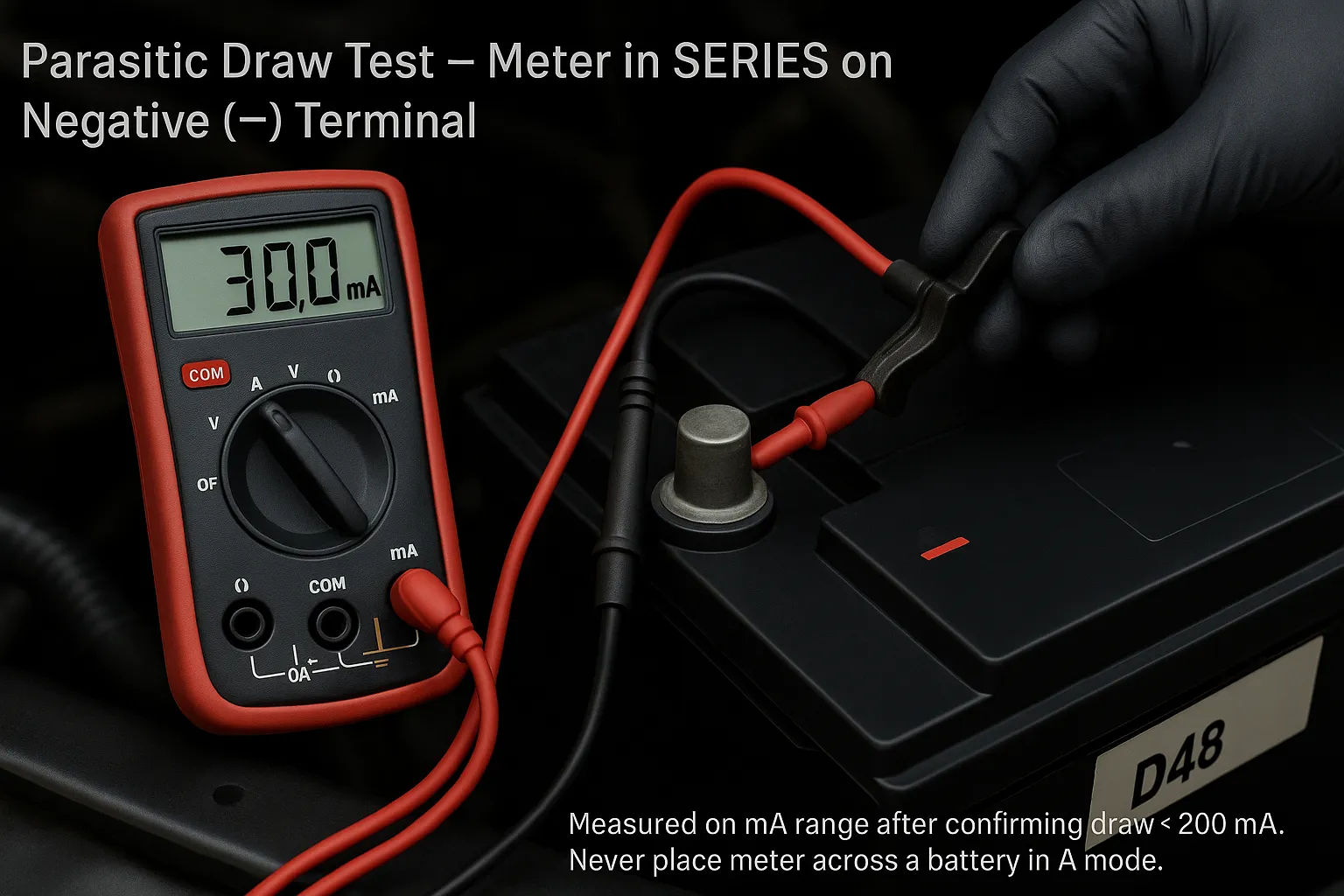

Step 5: Test for Parasitic Drain

Disconnect the negative terminal.
Connect a multimeter (set to DC amps) between the terminal and cable.
A reading above 50 mA (0.05 A) after settling suggests excess current draw.
Remove fuses systematically to identify the faulty circuit.

When to Replace the Battery or Alternator

Replace the Battery if it fails a load test, is more than 3–5 years old, or cannot hold charge.
Replace the Alternator if the charging voltage never exceeds 13 V, or a new battery repeatedly drains.
Repair Wiring or Accessories if parasitic drain is confirmed.

Final Recommendations

Distinguishing between a failing battery, a defective alternator, or parasitic drain is crucial for keeping your vehicle reliable. Drivers should perform these checks at the first sign of trouble – dimming lights, slow starts, or dashboard warnings. If in doubt, seek professional testing at a service centre.

Investing in high-quality batteries, such as reputable AGM or EFB types for modern vehicles, ensures longer service life. Regular maintenance – cleaning terminals, inspecting belts, and driving long enough to recharge – remains the best defence against breakdowns.

By diagnosing accurately and addressing issues early, you can avoid costly misdiagnoses and keep your car running smoothly, whatever the British weather brings.

Conclusion

Correctly diagnosing whether starting problems stem from the battery, alternator, or parasitic drain is essential to avoid wasted costs and prevent unexpected breakdowns. Simple checks with a multimeter, combined with visual inspection and load testing, help drivers pinpoint the true cause. Replacing only the faulty component – whether a weak battery, a failing alternator, or faulty wiring – ensures reliability, saves money, and extends vehicle lifespan.

Frequently Asked Questions (FAQs)

1. How can I tell if my car battery is dead or if it’s the alternator?

A dead battery usually shows signs such as slow cranking, dim lights, or corrosion on the terminals. If a new or fully charged battery keeps going flat, the alternator is often to blame. A simple multimeter test can confirm: below 12 V with the engine off points to the battery, while below 13.8 V when running indicates an alternator fault.

2. How long does a car battery last?

Most lead–acid car batteries last between three and five years. Extreme temperatures, frequent short trips, and heavy electrical use can shorten their service life. AGM and EFB batteries generally perform better in demanding conditions.

3. What are the signs of a failing alternator?

Key indicators include the red battery warning light on the dashboard, unusual noises such as squealing or grinding, flickering headlights, and repeated battery discharge even after replacement.

4. Can a bad alternator damage a new battery?

Yes. An alternator that undercharges or overcharges can shorten a new battery’s lifespan. Replacing the battery without addressing alternator issues usually leads to another breakdown.

5. How do I test my battery and alternator at home?

With a multimeter:
* Engine off: a healthy battery should read about 12.6 V.
* Engine running: voltage should rise to 13.8–14.5 V.
* Readings outside these ranges suggest a fault.

6. What is a parasitic drain and how does it affect the battery?

A parasitic drain occurs when electrical components draw current even after the vehicle is switched off. Faulty switches, alarms, or wiring are common causes. This can discharge the battery overnight if not addressed.

7. Should I replace my battery or alternator first?

If the battery is more than three to five years old and fails a load test, replacement is the first step. If a new battery continues to discharge or charging voltage stays low, the alternator is likely at fault and must be replaced.

8. When should I seek professional help?

If DIY checks don’t resolve the issue, or if you suspect a parasitic drain or wiring fault, it’s best to consult a qualified mechanic or auto electrician.

References

Haynes, Inc. (2001). Automotive Electrical Manual: How to Diagnose, Repair, and Rebuild Automotive Electrical Systems (1st ed.). Haynes Publishing
Santini, A. (2004). Automotive Electricity and Electronics (5th ed.). Delmar Cengage Learning
Puzakov, A. V. (2019). Diagnosing of failures of automotive alternators based on amplitude of fluctuations of voltage. Proceedings of the International Conference on Aviamechanical Engineering and Transport (AviaENT 2019), Atlantis Press, 282–287.
